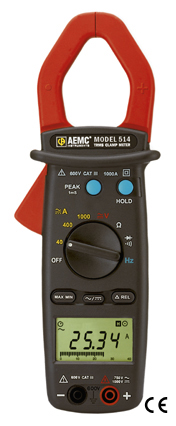

he Clamp-on Meter Model 514 is a general purpose professional clamp-on meter that measures up to the toughest standards. It is built into a rugged mechanical case and is designed using quality polycarbonate materials. This meter offers a complete set of measurement ranges and is in compliance with international safety and quality standards to ensure a professional and reliable measuring tool. The Model 514 is auto-ranging and provides the best measurement range and resolution for troubleshooting. It has a high resolution 40A range.
The Model 514 measures AC Amps, AC Volts, DC Volts, Ohms, Continuity ( with beeper) , Frequency ( from V or A) and has a Diode Test function. The Model 514 also uses Hall sensor technology that provides both DC and AC current measurements to 1000A.
The Model 514 is sized for a comfortable, one-handed operation. This model is True RMS sensing responding to distorded signal electrical systems. The jaw opening for the Model 514 is 1.575" ( 40mm) .
Features
Standard size, full function clamp-on meter
1000AAC/ DC current measurements
750VAC/ 1000VDC volt measurements
TRMS measurements
Resistance measurement to 4000©
Continuity with beeper below 40©
Frequency measurements from V and A
Diode test
1ms Peak function for fast capture of signals
Hold function to " freeze" readings
Push-button for easy ADC zeroing
Large easy-to-read 4000-count display
42-segment analog bargraph
Includes test leads and soft carrying case
Applications
Commercial, industrial, residential and HVAC troubleshooting
Power panel, junction box and battery bank monitoring
AC or DC motor testing
Power plant troubleshooting
Electrical testing and troubleshooting on non-linear loads, such as adjustable speed drives and computers
