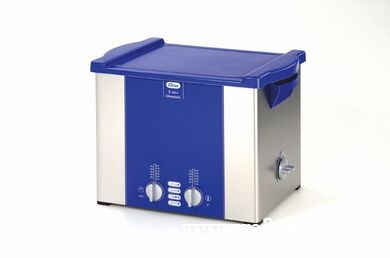

Elmasonic S 10 ( 230 V) 100 5507

Basket stainless steel 100 4170
Cover ( plastic) 100 3278
Further accessories on request
Technical data
Mains voltage ( Vac) 100-120 V/ 220-240 V
Ultrasonic frequency ( kHz) 37
Power consumption total S 10 ( W) 30
Power consumption total S 10 H ( W) 90
Ultrasonic power effective ( W) 30
Ultrasonic peak performance max.* * ( W) 240
Heating power ( units w. heating) ( W) 60
Unit outer dimensions W / D / H ( mm) 206 / 116 / 178
Tank internal dimensions W / D / H ( mm) 190 / 85 / 60
Basket internal dimensions W / D / H ( mm) 177/ 73 / 30
Max. filling volume tank ( lit.) 0, 8
Weight ( kg) 2, 0
Material tank stainless steel
Material casing stainless steel
Drain /
Carrying handles ( plastic) /
CE-compliant
Protection class IP 20
* * S 10 – S 15 H: impulse wave form; S 30 – S 900 H: standard sinewave
modulation
The
choice of the waveform has been matched to the relevant tank
size.
The
signal form of the wave results in a factor 4 or 8 for the ultrasonic
peak max., depending on the modulation of the wave.
